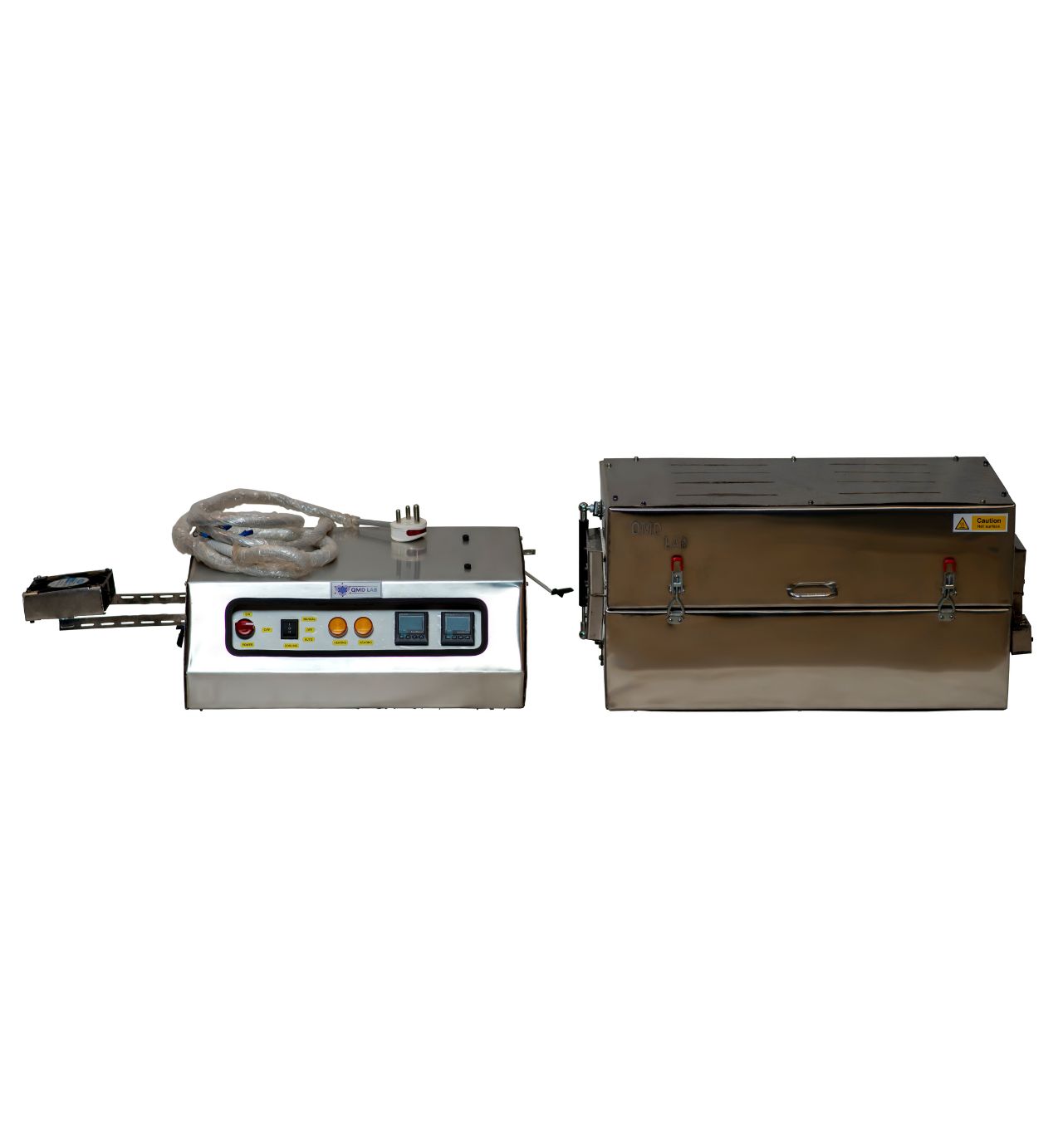

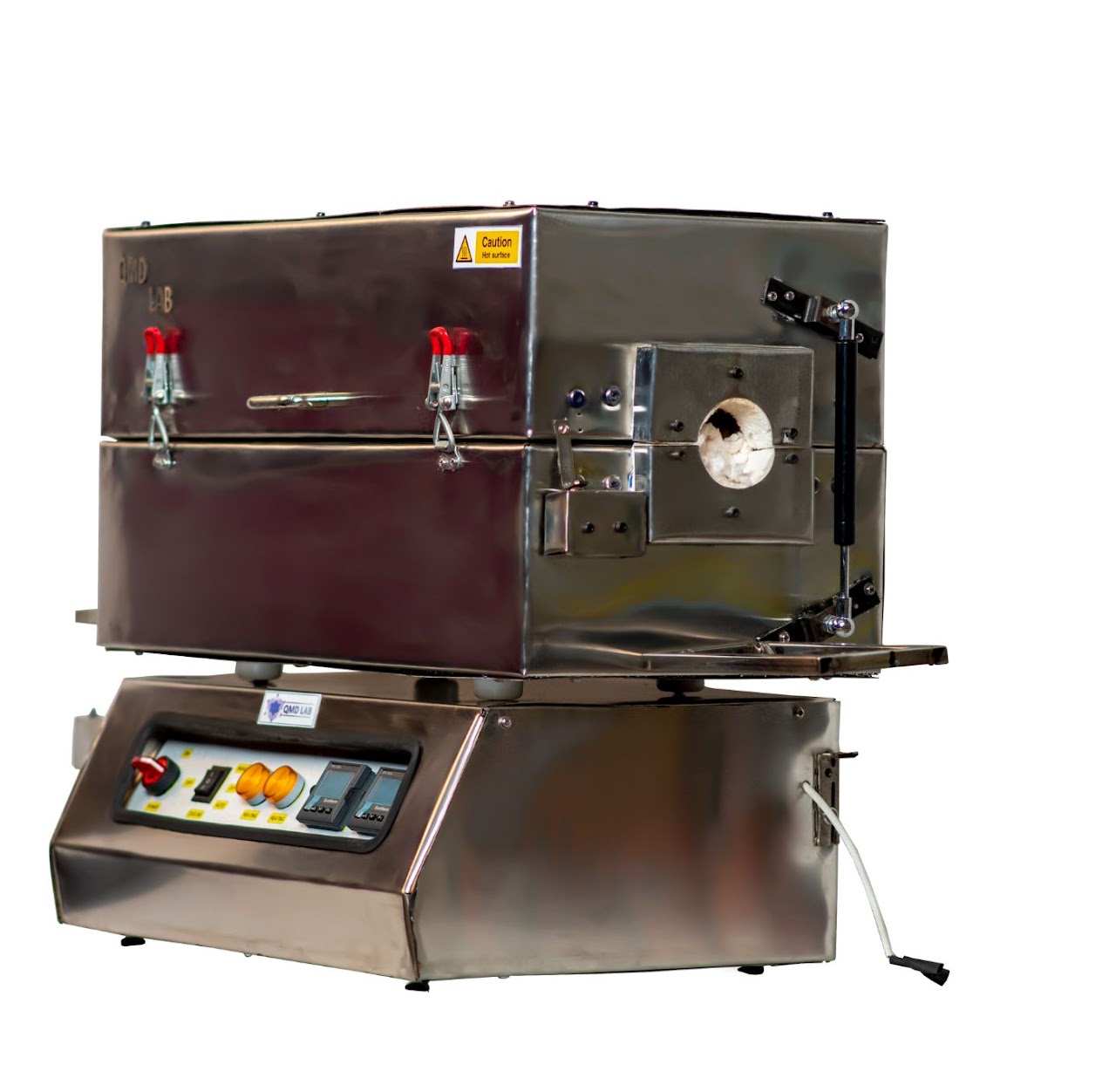

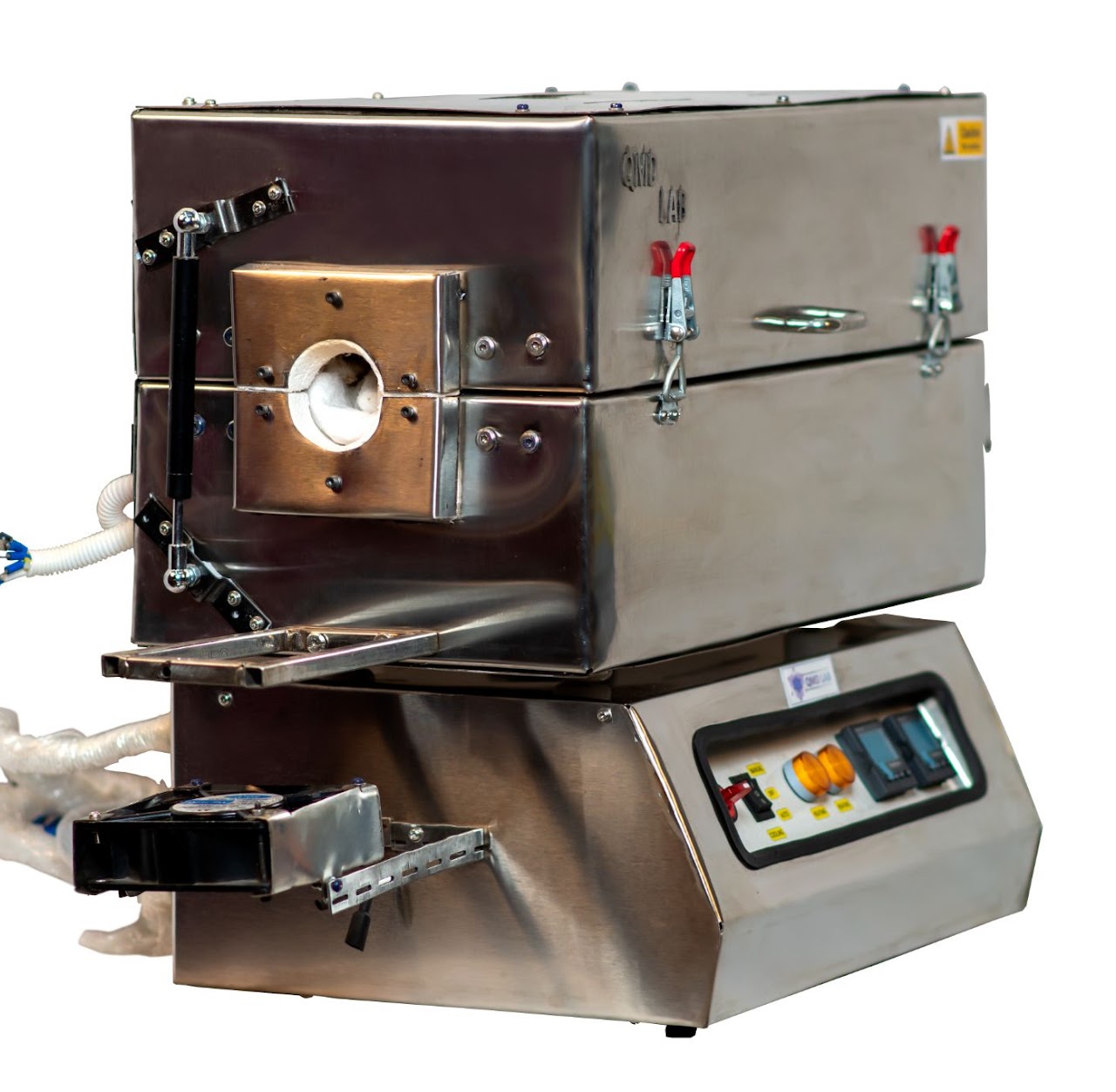

Two Zone SS Split Furnace Q23115T4
Product Details
Type Of Furnace: Tubular, Power Source: Electric
Furnace Dimension W X H X D: 600mm X 500mm X 400mm
Tube Dimension: Length 1000mm, ID 40/50/60/70mm
Heating zone1 length: 200mm, Heating zone 2 lenght: 200mm
Max OperatingTemperature: 1200 °C, Continuous working T: 1100 °C,
Rated Power (KW): 2 kW, Input Voltage (V): 220 V, Frequency: 50Hz
Heating Element: Kanthal APM/ Kanthal A1
Temperature Control: Microprocessor based Programmable controller with dual temperature display (Programmable Ramping and Dwelling)
Construction: Exterior body made of Stainless Steel
Insulation: High grade ceramic fibre insulation (Morgan)
Additional Information: Optional Accessories: Gloves, Heating Element, Tongs, Pirani Guage, Vaccum Pump, Vaccum Fitting, Solenoid Valves
Test Report to be submitted to the Buyer on Demand: Yes
Usage/Application Lab
Description
RELATED PRODUCTS
3-Zone split Tubular Furnace Q24115T9
Product Details:
Type Of Furnace: Tubular, Power Source: Electric
Design of furnace: Split into two halves
Furnace Dimension W X H X D: 800mm X 500mm X 400mm
Operating Tube Dimension: Length 1200mm, OD up to 60mm
Heating zone1 length: 150mm, Heating zone 2 lenght: 150mm, Zone 3 length: 150mm
Total heating length: 600mm, Each zone is separated by 75mm.
Max OperatingTemperature: 1150 °C, Continuous working T: 1100 °C,
Rated Power (KW): 2 kW, Input Voltage (V): 220 V, Frequency: 50Hz
Heating Element: Kanthal APM/ Kanthal A1
Temperature Control: Microprocessor based Programmable controller with dual temperature display (Programmable Ramping and Dwelling), with RS485 communication.
Construction: Exterior body made of Stainless Steel
Insulation: High grade ceramic fibre insulation (Morgan)
Additional Information: Optional Accessories: Gloves, Heating Element, Tongs, Pirani Guage, Vaccum Pump, Vaccum Fitting, Solenoid Valves
Test Report to be submitted to the Buyer on Demand: Yes
Usage/Application Lab
One Zone Split Furnace Q23115T3
Product Details
Type Of Furnace: Tubular, Power Source: Electric
Furnace Dimension W X H X D: 600mm X 480mm X 350mm
Tube Dimension: Length 600mm, ID 70mm
Heating zone1 length: 100mm
Heating zone 2 lenght: 100mm
Max OperatingTemperature: 1100 °C, Continuous working T: 1050 °C,
Rated Power (KW): 2 kW, Input Voltage (V): 220 V, Frequency: 50Hz
Temperature Control: Microprocessor based Programmable controller with dual temperature display (Programmable Ramping and Dwelling)
Construction: Exterior body made of Mild Steel Sheet and Powder coated for superior finish. Square bar internal structure for the sturdy design.
Insulation: High grade ceramic fibre insulation (Morgan)
One Zone Vertical Split Furnace Q23115T5
Product Details
Type Of Furnace: Tubular, Power Source: Electric
Furnace Dimension W X H X D: 600mm X 480mm X 350mm
Tube Dimension: Length 600mm, ID 70mm
Heating zone1 length: 100mm
Heating zone 2 lenght: 100mm
Max OperatingTemperature: 1100 °C, Continuous working T: 1050 °C,
Rated Power (KW): 2 kW, Input Voltage (V): 220 V, Frequency: 50Hz
Temperature Control: Microprocessor based Programmable controller with dual temperature display (Programmable Ramping and Dwelling)
Construction: Exterior body made of Mild Steel Sheet and Powder coated for superior finish. Square bar internal structure for the sturdy design.
Insulation: High grade ceramic fibre insulation (Morgan)
Two Zone Split Furnace Q23115T7
Product Details
Temperature Accuracy: +/- 1 °C (+/-1.8 °F)
Heating zone dimension: Zone1: 200mm, Zone2: 200mm
Tube Material: High Density Alumina/Quartz tube, Tube Dia: up to 80mm
Material of End Flange: Stainless Steel
Internal Chamber Construction: Vacuum formed ultra high purity alumina low thermal mass insulation with pre sintered fiber insulation board
Temperature Controller: Microprocessor based PID Controller
Controlling Thermocouple: R-Type controlling sensor/K-type controlling sensor
Maximum Temperature:1200 °C, Working Temperature: 1100 °C
Heating Element: Kanthal A1
Dimension: Width: 600mm, Height: 500 mm, Depth: 400 mm, Weight: 60kg
External Chember construction: MS Poeder coated
Additional Information: Optional Accessories: Gloves, Heating Element, Tongs, Pirani Guage, Vaccum Pump, Vaccum Fitting, Solenoid Valves
Test Report to be submitted to the Buyer on Demand: Yes
Usage/Application Lab
