One Zone Vertical Split Furnace Q23115T5
Product Details
Type Of Furnace: Tubular, Power Source: Electric
Furnace Dimension W X H X D: 600mm X 480mm X 350mm
Tube Dimension: Length 600mm, ID 70mm
Heating zone1 length: 100mm
Heating zone 2 lenght: 100mm
Max OperatingTemperature: 1100 °C, Continuous working T: 1050 °C,
Rated Power (KW): 2 kW, Input Voltage (V): 220 V, Frequency: 50Hz
Temperature Control: Microprocessor based Programmable controller with dual temperature display (Programmable Ramping and Dwelling)
Construction: Exterior body made of Mild Steel Sheet and Powder coated for superior finish. Square bar internal structure for the sturdy design.
Insulation: High grade ceramic fibre insulation (Morgan)
Description
RELATED PRODUCTS

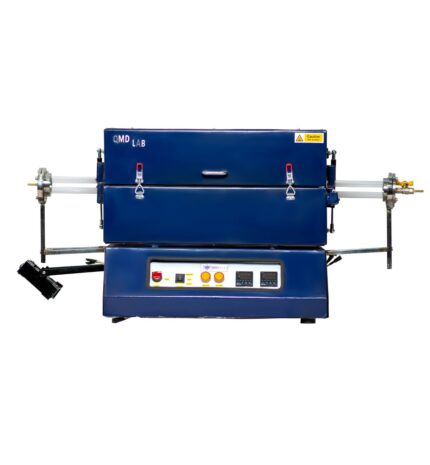

One Zone Split Furnace Q23115T3
Product Details
Type Of Furnace: Tubular, Power Source: Electric
Furnace Dimension W X H X D: 600mm X 480mm X 350mm
Tube Dimension: Length 600mm, ID 70mm
Heating zone1 length: 100mm
Heating zone 2 lenght: 100mm
Max OperatingTemperature: 1100 °C, Continuous working T: 1050 °C,
Rated Power (KW): 2 kW, Input Voltage (V): 220 V, Frequency: 50Hz
Temperature Control: Microprocessor based Programmable controller with dual temperature display (Programmable Ramping and Dwelling)
Construction: Exterior body made of Mild Steel Sheet and Powder coated for superior finish. Square bar internal structure for the sturdy design.
Insulation: High grade ceramic fibre insulation (Morgan)
Two Zone Split Furnace Q23115T7
Product Details
Temperature Accuracy: +/- 1 °C (+/-1.8 °F)
Heating zone dimension: Zone1: 200mm, Zone2: 200mm
Tube Material: High Density Alumina/Quartz tube, Tube Dia: up to 80mm
Material of End Flange: Stainless Steel
Internal Chamber Construction: Vacuum formed ultra high purity alumina low thermal mass insulation with pre sintered fiber insulation board
Temperature Controller: Microprocessor based PID Controller
Controlling Thermocouple: R-Type controlling sensor/K-type controlling sensor
Maximum Temperature:1200 °C, Working Temperature: 1100 °C
Heating Element: Kanthal A1
Dimension: Width: 600mm, Height: 500 mm, Depth: 400 mm, Weight: 60kg
External Chember construction: MS Poeder coated
Additional Information: Optional Accessories: Gloves, Heating Element, Tongs, Pirani Guage, Vaccum Pump, Vaccum Fitting, Solenoid Valves
Test Report to be submitted to the Buyer on Demand: Yes
Usage/Application Lab

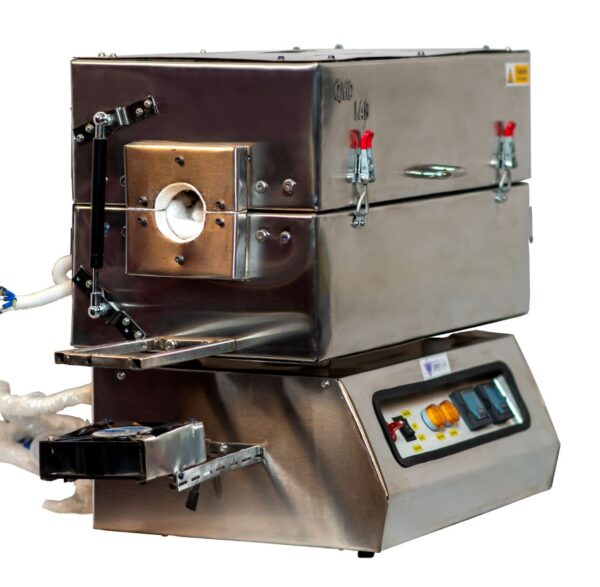

Two Zone SS Split Furnace Q23115T4
Product Details
Type Of Furnace: Tubular, Power Source: Electric
Furnace Dimension W X H X D: 600mm X 500mm X 400mm
Tube Dimension: Length 1000mm, ID 40/50/60/70mm
Heating zone1 length: 200mm, Heating zone 2 lenght: 200mm
Max OperatingTemperature: 1200 °C, Continuous working T: 1100 °C,
Rated Power (KW): 2 kW, Input Voltage (V): 220 V, Frequency: 50Hz
Heating Element: Kanthal APM/ Kanthal A1
Temperature Control: Microprocessor based Programmable controller with dual temperature display (Programmable Ramping and Dwelling)
Construction: Exterior body made of Stainless Steel
Insulation: High grade ceramic fibre insulation (Morgan)
Additional Information: Optional Accessories: Gloves, Heating Element, Tongs, Pirani Guage, Vaccum Pump, Vaccum Fitting, Solenoid Valves
Test Report to be submitted to the Buyer on Demand: Yes
Usage/Application Lab
Vacuum Tube Furnace
Specification of Vacuum Tubular Furnace:-
Model Number: Q25150T10D85
Max Temp. 1500°C
Cont. Oprt. Temp: 1400°C
Tube Length: 1000 (mm)
Tube Dia: OBE (75 i/d x 85 o/d)
Furnace Chamber Size: 160 W × 150 H × 300 L (mm)
Heating Elements: SiC
Thermocouple: R type
TEMPERATURE CONTROL: Microprocessor-based Digital PID Temperature Programmer/Controller, with 0-5 V output for the Thyristor System
Vacuum & other Accessories
Heat-Up Rate Limit: Maximum 6°C per minute
Skin Temperature: Not more than 30°C above ambient
Power Supply / Rating:230V, Single Phase, AC, 50 Hz / 4 kW
Thyristor System: ‘BYSOTHERM’ makes a Soft Start with the Current Control system through
External Potentiometer for Manual Adjustment of Element Current
Temperature Protector: Solid State with Auto Reset
Double stage Direct driven Rotary Vacuum Pump : (Displacement capacity, 100Ltrs/Min), with in-built gas ballast and no-load ultimate vacuum better than 10–2 m.bar
1440 rpm Electric Motor
Digital Pirani Gauge
- S. Tee having KF-25 End Flanges
- S. Adapter having KF-25 End Flange
