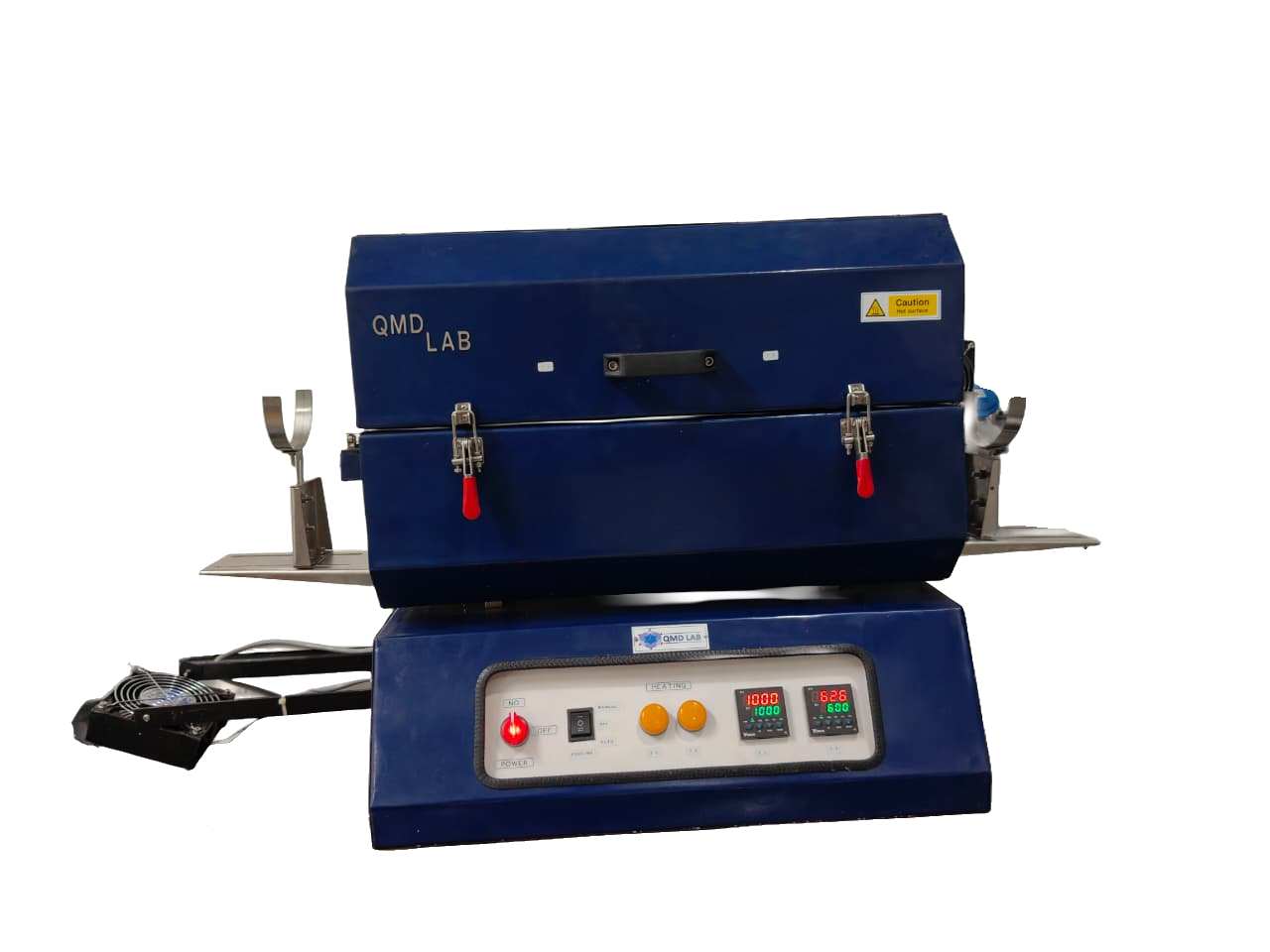

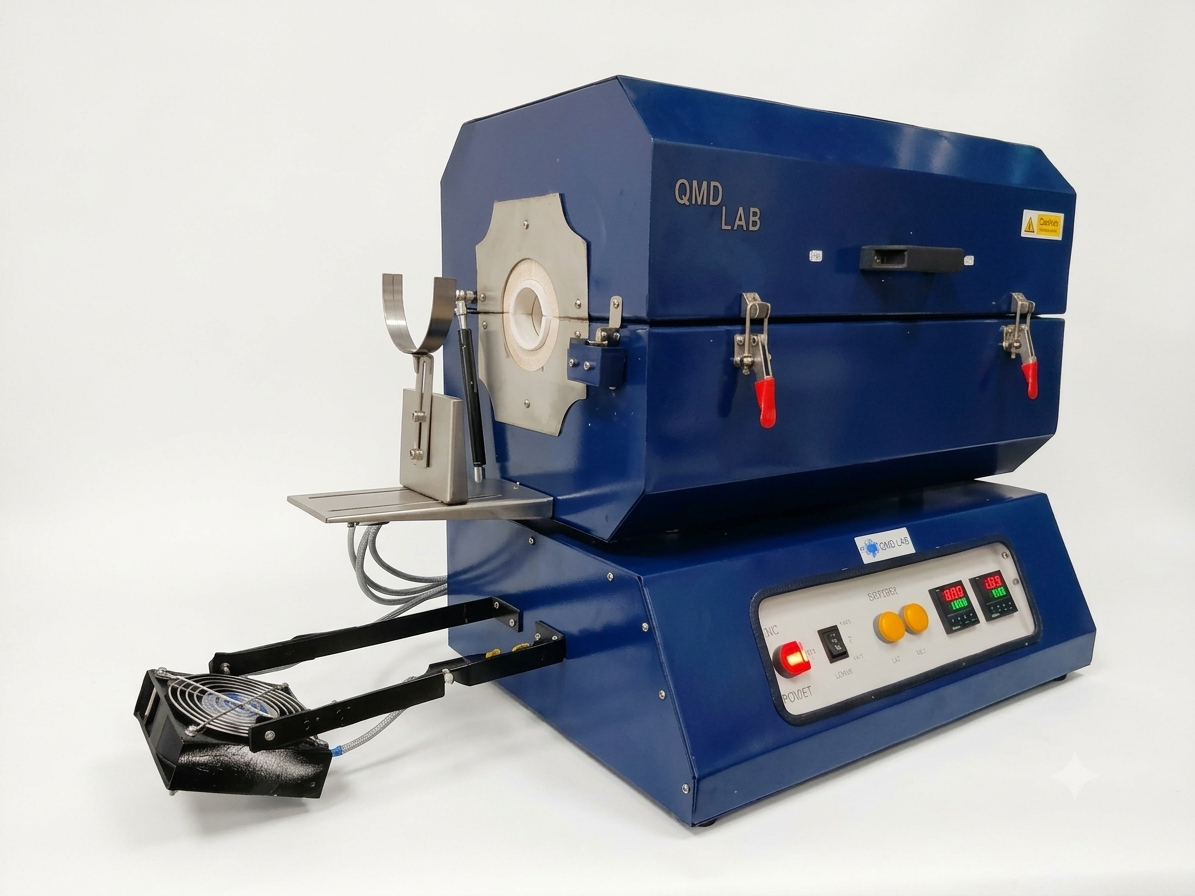

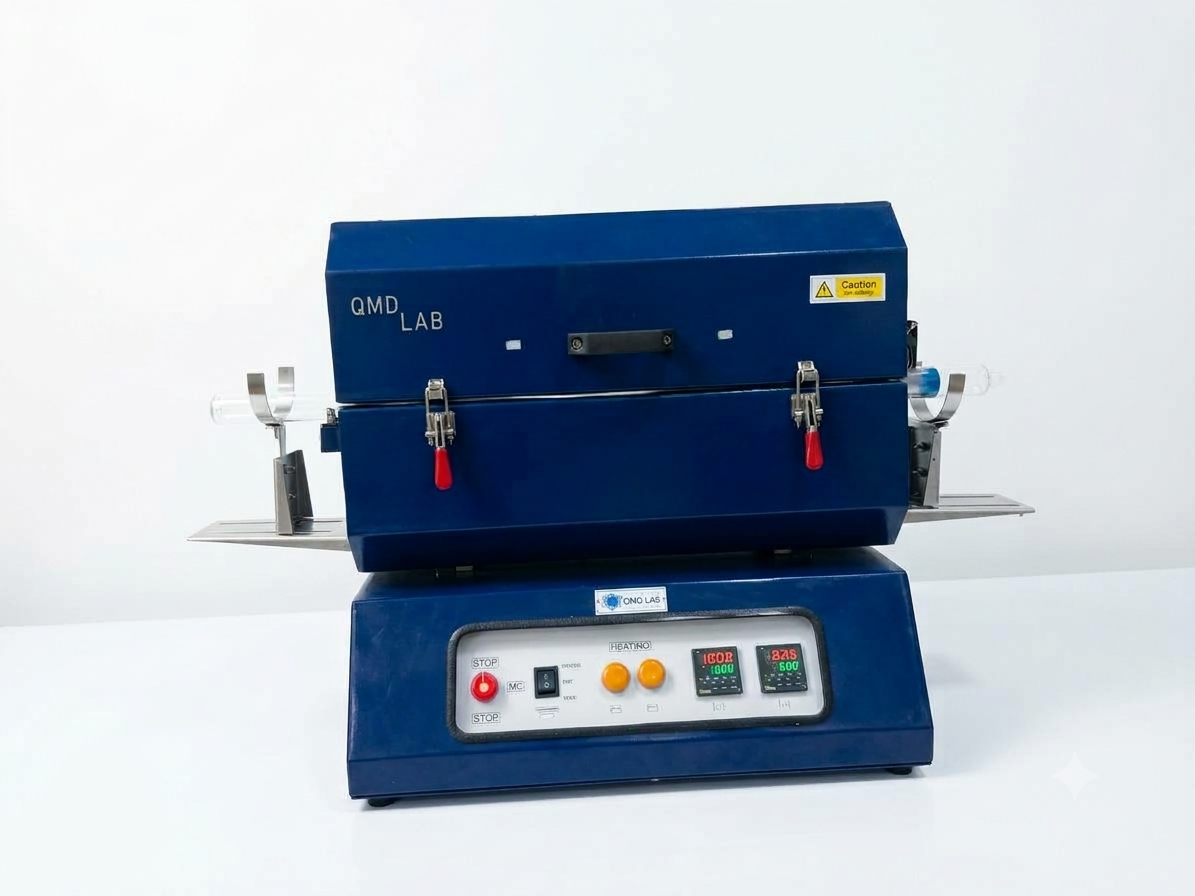

Two Zone Split Furnace Q23115T7

Product Details

Temperature Accuracy: +/- 1 °C (+/-1.8 °F)

Heating zone dimension: Zone1: 200mm, Zone2: 200mm

Tube Material: High Density Alumina/Quartz tube, Tube Dia: up to 80mm

Material of End Flange: Stainless Steel

Internal Chamber Construction: Vacuum formed ultra high purity alumina low thermal mass insulation with pre sintered fiber insulation board

Temperature Controller: Microprocessor based PID Controller

Controlling Thermocouple: R-Type controlling sensor/K-type controlling sensor

Maximum Temperature:1200 °C, Working Temperature: 1100 °C

Heating Element: Kanthal A1

Dimension: Width: 600mm, Height: 500 mm, Depth: 400 mm, Weight: 60kg

External Chember construction: MS Poeder coated

Additional Information: Optional Accessories: Gloves, Heating Element, Tongs, Pirani Guage, Vaccum Pump, Vaccum Fitting, Solenoid Valves

Test Report to be submitted to the Buyer on Demand: Yes

Usage/Application Lab

BUY NOW

Description

Reviews

There are no reviews yet.

Be the first to review “Two Zone Split Furnace Q23115T7”

Your email address will not be published. Required fields are marked *

RELATED PRODUCTS

Placeholder
Compare

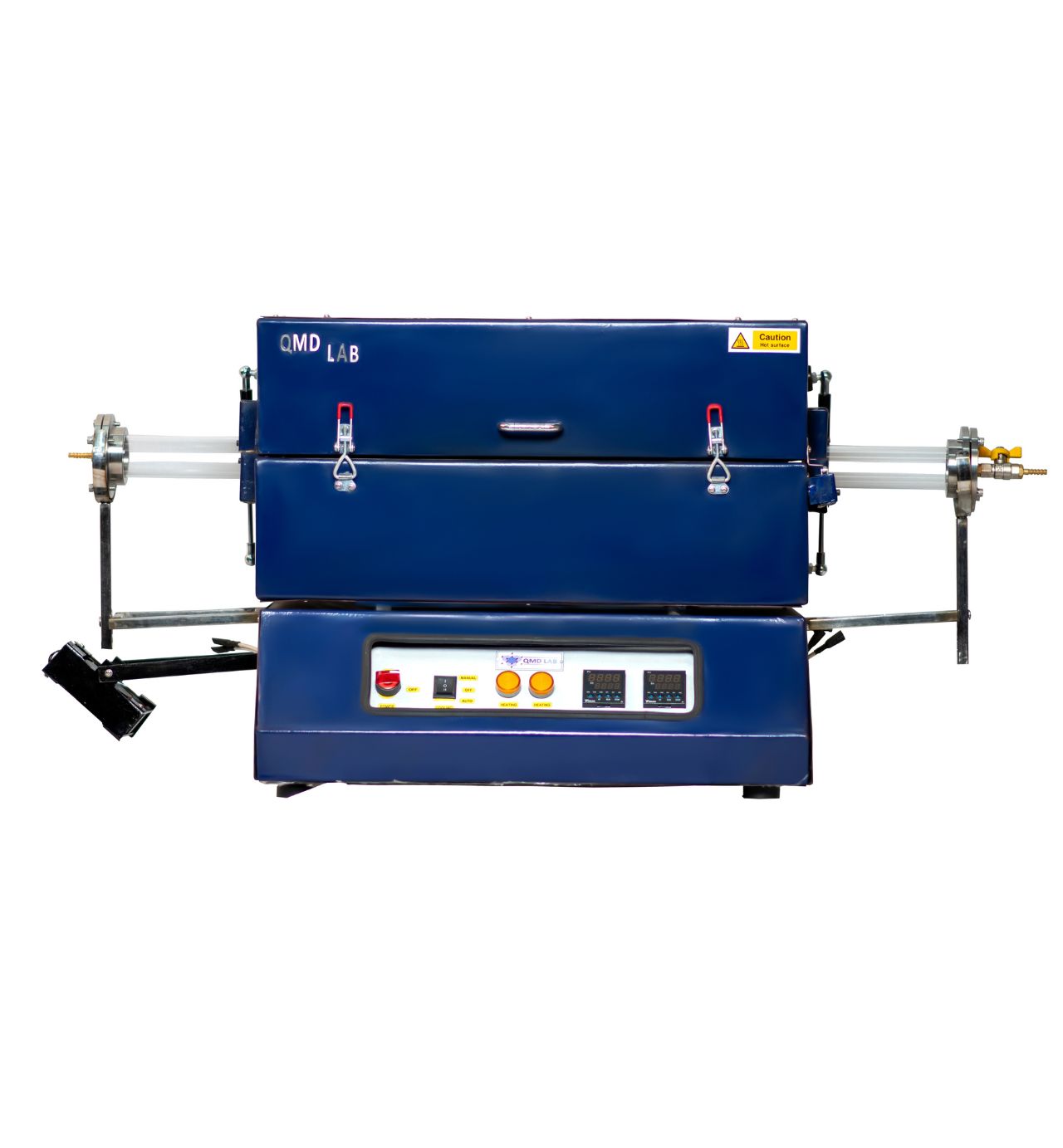

3-Zone split Tubular Furnace Q24115T9

Product Details: Type Of Furnace: Tubular, Power Source: Electric Design of furnace: Split into two halves Furnace Dimension W X H X D: 800mm X 500mm X 400mm Operating Tube Dimension: Length 1200mm, OD up to 60mm Heating zone1 length: 150mm, Heating zone 2 lenght: 150mm, Zone 3 length: 150mm Total heating length: 600mm, Each zone is separated by 75mm. Max OperatingTemperature: 1150 °C, Continuous working T: 1100 °C, Rated Power (KW): 2 kW, Input Voltage (V): 220 V, Frequency: 50Hz Heating Element: Kanthal APM/ Kanthal A1 Temperature Control: Microprocessor based Programmable controller with dual temperature display (Programmable Ramping and Dwelling), with RS485 communication. Construction: Exterior body made of Stainless Steel Insulation: High grade ceramic fibre insulation (Morgan) Additional Information: Optional Accessories: Gloves, Heating Element, Tongs, Pirani Guage, Vaccum Pump, Vaccum Fitting, Solenoid Valves Test Report to be submitted to the Buyer on Demand: Yes Usage/Application Lab
Add to wishlist
Read more
Quick view
Compare

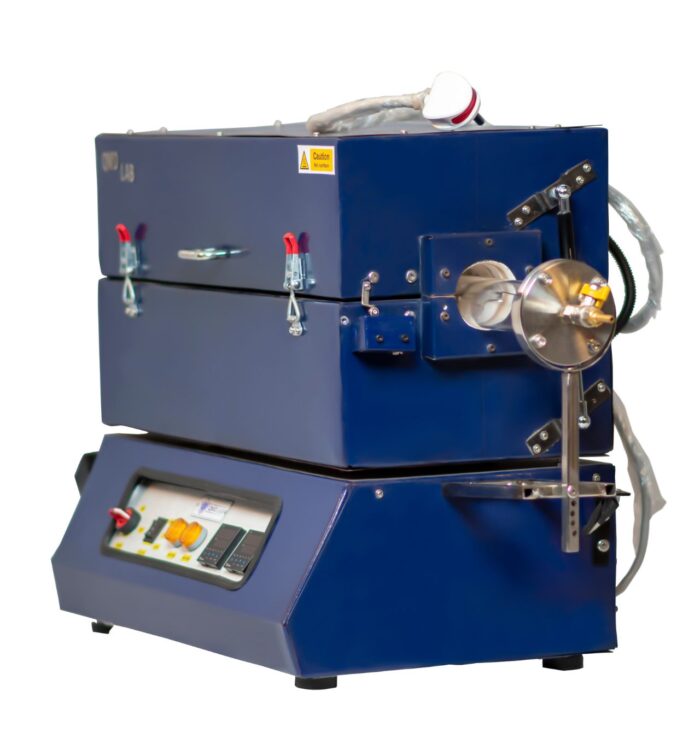

One Zone Split Furnace Q23115T3
