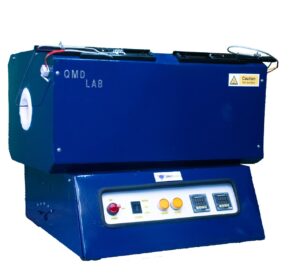

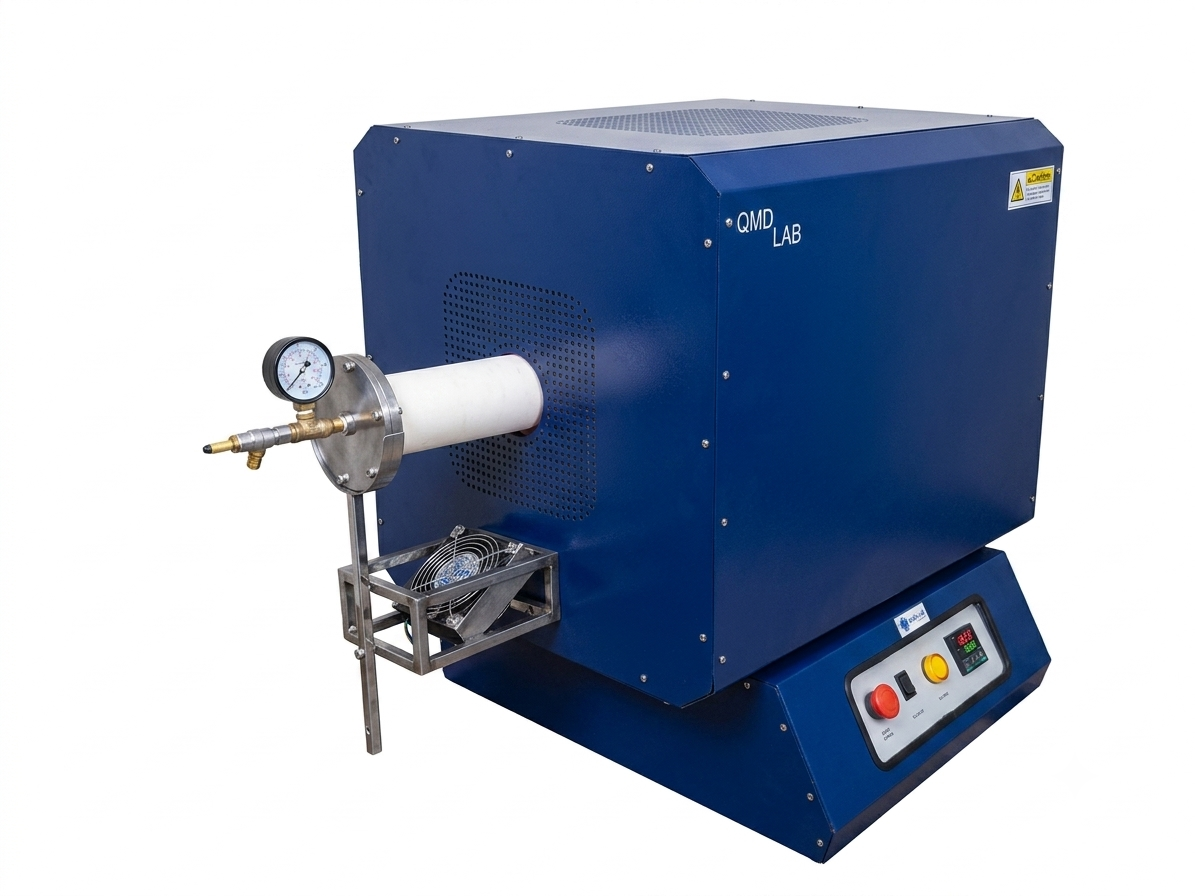

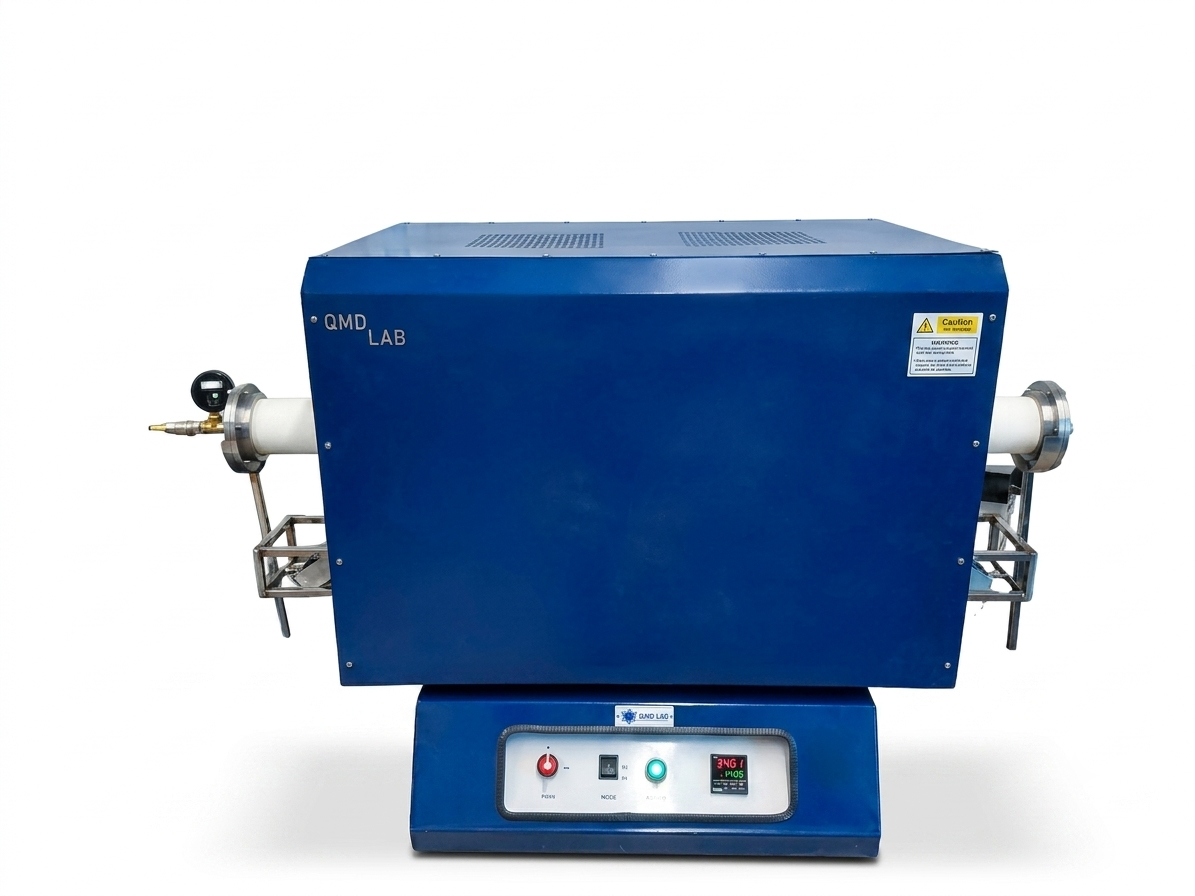

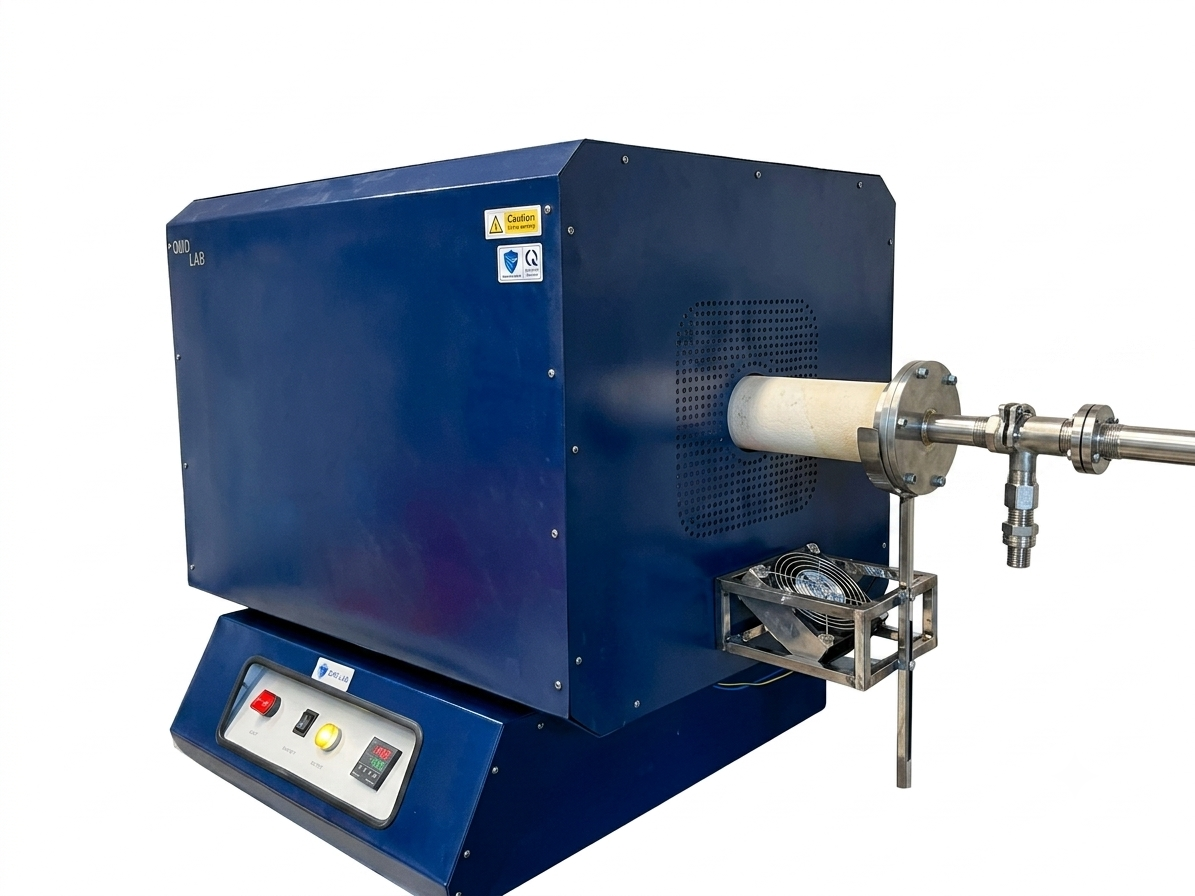

Tubular Furnace Q23130T8 (1400°C)

Product Details Temperature Accuracy: +/- 1 °C (+/-1.8 °F) Material of End Flange: Stainless Steel Tube Material: High Density Alumina/ Quartz Internal Chamber Construction: Vacuum formed ultra high purity alumina low thermal mass insulation with pre sintered fiber insulation board Temperature Controller: Microprocessor based PID Controller Controlling Thermocouple: R-Type controlling sensor External Chember construction: MS Poeder coated Maximum Temperature:1200 °C, Continuous Working Temperature: 1100 °C Heating Element: Kanthal A1 Length: 600mm, Height: 500 mm, Depth: 400mm, Weight: 30kg Additional Information: Optional Accessories: Gloves, Heating Element, Tongs, Pirani Guage, Vaccum Pump, Vaccum Fitting, Solenoid Valves Test Report to be submitted to the Buyer on Demand: Yes Usage/Application Lab

Product Details Type Of Furnace: Tubular, Power Source: Electric Furnace Dimension W X H X D: 600mm X 480mm X 350mm Tube Dimension: Length 600mm, ID 60mm Heating Zone 1: 200mm, Zone 2: 200mm Uniform Heating Zone: 100mm for each zone Max OperatingTemperature: 1150 °C, Continuous working T: 1100 °C, Rated Power (KW): 2.5 kW, Input Voltage (V): 220 V, Frequency: 50Hz Temperature Control: Microprocessor based Programmable controller with dual temperature display (Programmable Ramping and Dwelling) Construction: Exterior body made of Mild Steel Sheet and Powder coated for superior finish. Square bar internal structure for the sturdy design. Insulation: High grade ceramic fibre insulation (Morgan) Gas Flow: Separate tube and fittings can be provided based on user's requirements Cooling: Auto cooling device is integrated for faster cooling while maintaining robust insulation during heating Usage/Application Lab and industry Others: Two way input power*
