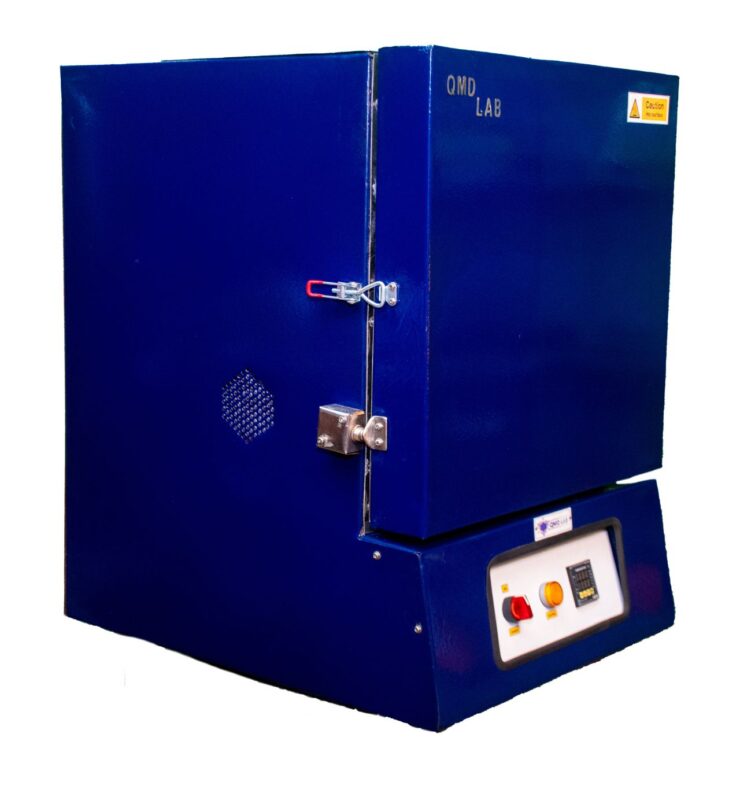

Muffle Furnace Q25170M10
Product Details
Temperature range:100-1700 °C
Continuous operating temp: 100-1600 °C
Temperature Accuracy: +/- 1 °C (+/-1.8 °F)
Heating Element: MoSi2
Inner Length: 180mm, Inner Width: 200 mm
Temperature Controller: PID controller
Programmable (Profile) Termprature Controller: Yes
Thermocouple: B- Type
Alarm: Audible
Phase: Single
Display: LED
Inner Depth: 200mm
Volume: 7.0 (liter)
Chamber MOC: Ceramic Low Density Fibre Board, Ceramic Zirconium Board
Exterior MOC: Mild steel powder coated
Exterior: Dual Shell housing for low skin temperature Exhaust air outlet at the rear wall of the furnace
Safety Device fitted: Yes
Door: Insulated Solid door with clamp
Calibration certificate from NABL approved Lab: Yes
Usage/Application Lab
Description
RELATED PRODUCTS
Muffle Furnace Q22115M1
Product Details
Type Of Furnace: Muffle, Power Source: Electric
Heating zone W X H X D : 102mm X 127mm X 245 mm (Approx: 4" X 5" X 9.5")
Chamber volume: 3.2 L
Max Operating T: 1200 °C, Continuous working T: 1100 °C,
Temperature control resolution: ± 1 °C, Temperature sensor: K- type sensor
Rate of heating : Up to 10 °C per minute
Rated Power (KW) 2 kW, Input Voltage (V) 220 V, Frequency 50Hz
Furnace Outer Dimension W X H X D: 335mm X 435mm X 445mm
Temperature Control: Microprocessor based Programmable controller with dual temperature display Construction: Exterior body made of Mild Steel Sheet and Powder coated for superior finish. Square bar internal structure for the sturdy design.
Insulation: High grade ceramic fibre board insulation (Morgan)
Usage/Application Lab
Others: Two way input power*
Muffle Furnace Q22115M2
Product Details
Temperature range: 100-1200 °C
Continuous operating temp: 100-1100 °C
Temperature Accuracy: +/- 1 °C (+/-1.8 °F)
Heating Element: Kanthal A1
Inner Length: 150mm, Inner Height: 150 mm, Inner Depth: 250mm
Chamber Volume: 5.6 Liter
Outer Size W X H X D: 445 mm X 550 mm X 550 mm
Programmable (Profile) Termprature Controller: Yes
Thermocouple: K-Type
Alarm: Visual
Phase: Single
Chamber: Ceramic High Density Fibre Board
Exterior: Dual Shell housing for low skin temperature Exhaust air outlet at the rear wall of the furnace
Insulation: Ceramic fiber blanket
Safety Device fitted: Yes
Door: Insulated Solid door with clamp
Usage/Application Lab
Others: Two way input power*
Muffle Furnace Q23120M4
Product Details
Temperature range: 100-1200 °C
Continuous operating temp: 100-1100 °C
Temperature Accuracy: +/- 1 °C
Heating Element: Kanthal witre
Inner Height: 200 mm, Inner Width: 200 mm, Inner Depth: 250 mm, Volume: 10 Liter
Outer Size W X H X D: 460 mm X 600 mm X 550 mm
Temperature Controller:Programmable profile controller
Thermocouple: K-Type
Alarm: Visual, Audio
Phase: Single, Voltage: 230 V
Chamber: Ceramic High Density Fibre Board
Exterior: Dual Shell housing for low skin temperature Exhaust air outlet at the rear wall of the furnace
Safety Device fitted: Yes
Door: Insulated Solid door with clamp with Drop down door Opening.
Usage/Application Lab
Others: Two way input power*
Muffle Furnace Q23120M5
Product Details
Temperature range: 100-1200 °C
Continuous operating temp: 100-1200 °C
Temperature Accuracy: +/- 1 °C (+/-1.8 °F)
Heating Element: Kanthal A1
Inner Length: 300mm, Inner Width: 150 mm
Temperature Controller: PID controller
Programmable (Profile) Termprature Controller: Yes
Thermocouple: K Type
Alarm: Audible
Phase: Single
Display: LED
Inner Depth: 300mm, Volume: 13 Liter
Chamber MOC: Ceramic Zirconium Board
Exterior MOC: Mild steel powder coated
Exterior: Dual Shell housing for low skin temperature Exhaust air outlet at the rear wall of the furnace
Insulation: Ceramic fiber blanket
Safety Device fitted: Yes
Door: Insulated Solid door with clamp with Drop down door Opening.
Calibration certificate from NABL approved Lab: Yes
Usage/Application Lab
Others: Two way input power*
Muffle Furnace Q23120M6
Product Details
Temperature range: 100-1200 °C
Continuous operating temp: 100-1100 °C
Temperature Accuracy: +/- 5 °C
Heating Element: Kanthal wire
Inner Length: 250mm, Inner Width: 150 mm
Temperature Controller: PID controller
Programmable (Profile) Termprature Controller: Yes
Thermocouple: K Type
Alarm: Audible
Phase: Single
Display: LED
Inner Depth: 200mm, Volume: 7 Liter
Chamber MOC:Muffle Baked
Exterior MOC: Mild steel powder coated
Exterior: Dual Shell housing for low skin temperature Exhaust air outlet at the rear wall of the furnace
Insulation: Ceramic Fibre Blanket
Safety Device fitted: Yes
Door: Insulated Solid door with clamp with Drop down door Opening.
Calibration certificate from NABL approved Lab: Yes
Usage/Application Lab
Others: Two way input power*
