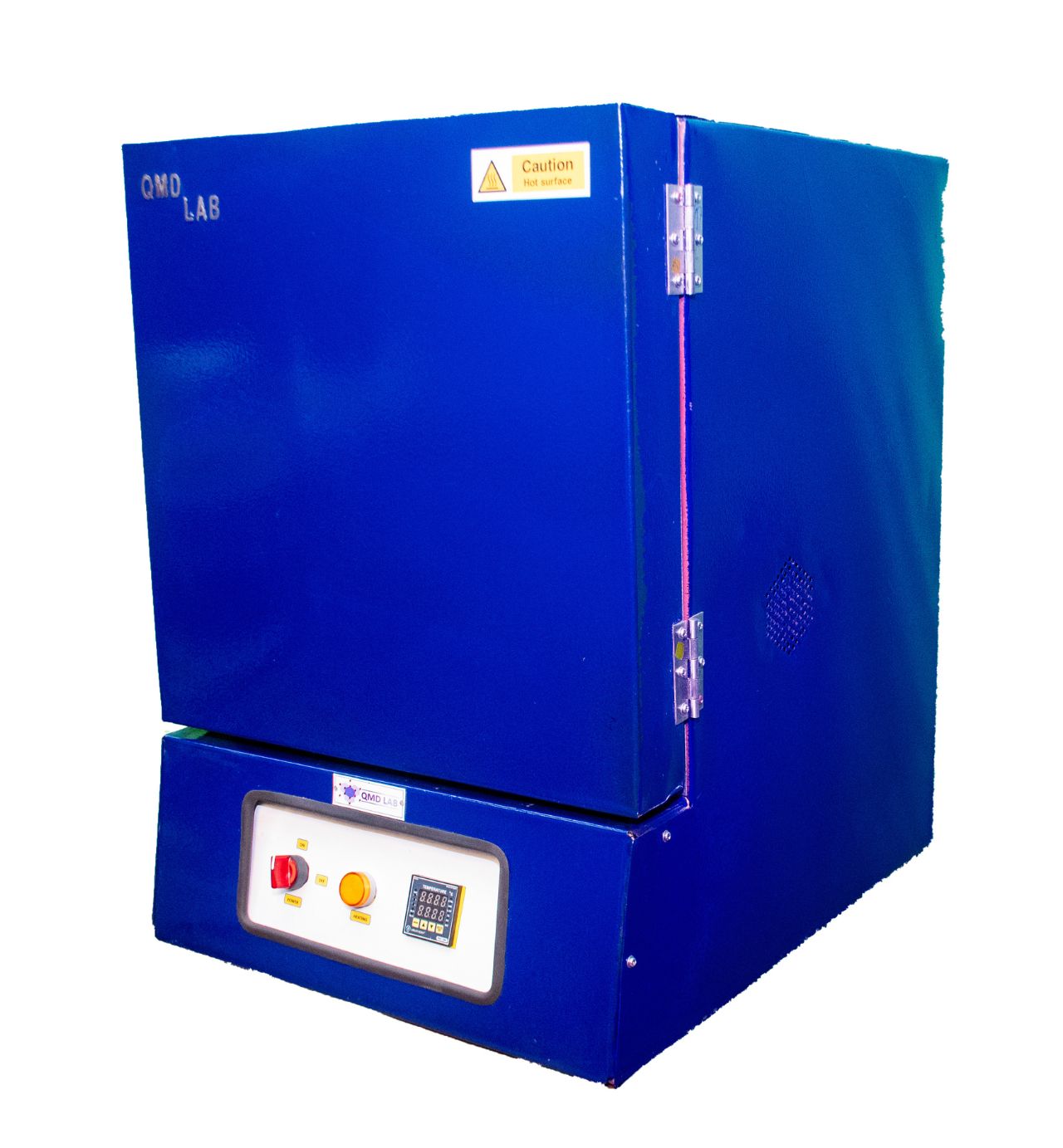

Muffle Furnace Q22115M2
Product Details
Temperature range: 100-1200 °C
Continuous operating temp: 100-1100 °C
Temperature Accuracy: +/- 1 °C (+/-1.8 °F)
Heating Element: Kanthal A1
Inner Length: 150mm, Inner Height: 150 mm, Inner Depth: 250mm
Chamber Volume: 5.6 Liter
Outer Size W X H X D: 445 mm X 550 mm X 550 mm
Programmable (Profile) Termprature Controller: Yes
Thermocouple: K-Type
Alarm: Visual
Phase: Single
Chamber: Ceramic High Density Fibre Board
Exterior: Dual Shell housing for low skin temperature Exhaust air outlet at the rear wall of the furnace
Insulation: Ceramic fiber blanket
Safety Device fitted: Yes
Door: Insulated Solid door with clamp
Usage/Application Lab
Others: Two way input power*
Description
These furnaces are flexible and can be used for a wide range of applications such as single crystal growth by melt or flux melt growth below 1100 oC. The furnace chamber is designed for low thermal loss and also low power consumption. It is ideal for long duration, slow cooling single crystal growth. The high-quality fibre insulation ensures fast heating and cooling times. The high-quality Kanthal wires ensures the durability of the heating elements. Our temperature sensor is embedded within ceramic cap that minimizes sensor breakdown. With double wall design, the body surface temperature will remain below 60 °C while maintaining maximum operating temperature 1200 oC inside.
*Depending on user’s choice we are offering a with two-way power switch to connect to both main power supply and UPS line. We can also provide suitable UPS for each furnace.
RELATED PRODUCTS
Muffle Furanace Q25150M13
Product Details
Temperature range: 100-1500 °C
Continuous operating temp: 100-1400 °C
Temperature Accuracy: +/- 1 °C
Heating Element: Kanthal witre
Inner Height: 260 mm, Inner Width: 200 mm, Inner Depth: 250 mm, Volume: 13 Liter
Outer Size W X H X D: 550 mm X 700 mm X 600 mm
Temperature Controller:Programmable profile controller
Thermocouple: K-Type
Alarm: Visual, Audio
Phase: Single, Voltage: 230 V
Chamber: Ceramic High Density Fibre Board
Exterior: Dual Shell housing for low skin temperature Exhaust air outlet at the rear wall of the furnace
Safety Device fitted: Yes
Door: Insulated Solid door with clamp with Drop down door Opening.
Usage/Application Lab
Others: Two way input power*

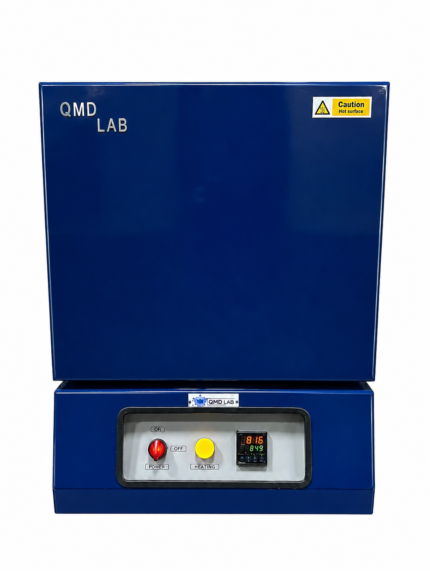

Muffle Furnace Q23120M3
