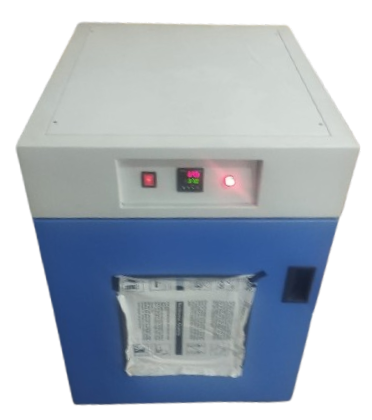

HOT AIR OVEN
Chember Vol 100 L
Outer dimension 400 x 400 x 650 mm
Temp upto 300 degC
Power rating 3 KW
Programmable controller
Total 6 no’s heaters installed in oven
500 watts each heater x 6 no’s heaters.
3 kw 230 volts, single phase.
Top side panel board consisting of digital temperature controller,
On off switch, incating lamp, Solid state relay. With required wiring.
Ceramic fiber insulation.Inside 2 no’s SS tray.
Inner SS sheet 1 mm thick, outer MS sheet with neatly powder coating paint.
Description
