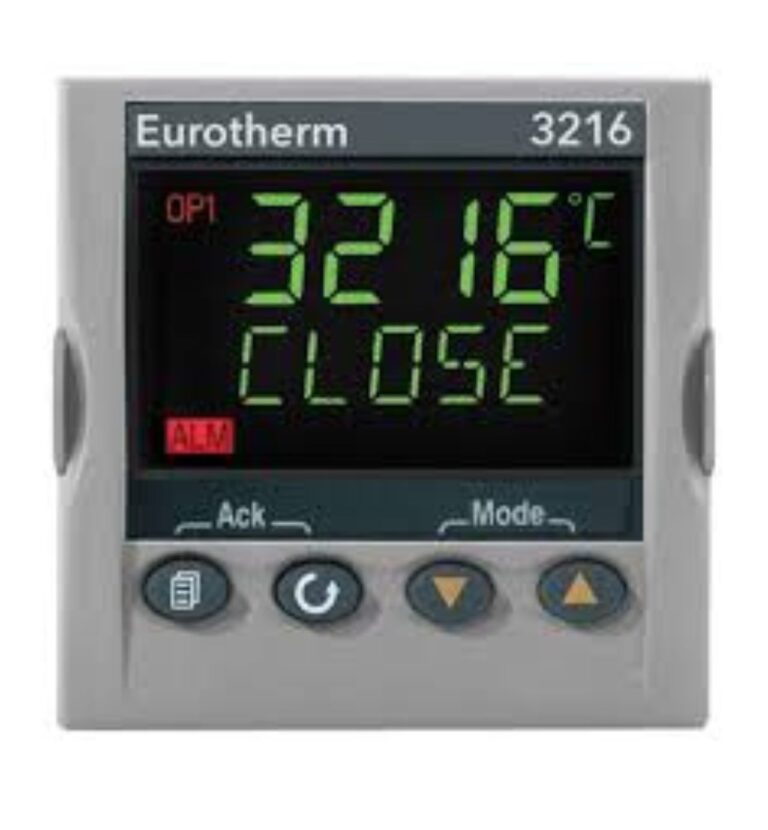

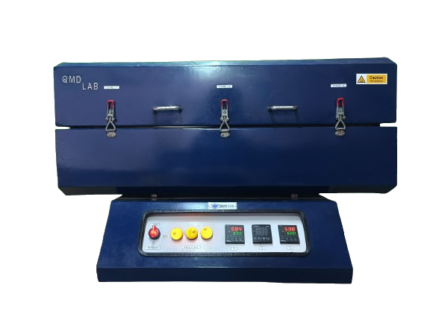

Product Details: Type Of Furnace: Tubular, Power Source: Electric Design of furnace: Split into two halves Furnace Dimension W X H X D: 800mm X 500mm X 400mm Operating Tube Dimension: Length 1200mm, OD up to 60mm Heating zone1 length: 150mm, Heating zone 2 lenght: 150mm, Zone 3 length: 150mm Total heating length: 600mm, Each zone is separated by 75mm. Max OperatingTemperature: 1150 °C, Continuous working T: 1100 °C, Rated Power (KW): 2 kW, Input Voltage (V): 220 V, Frequency: 50Hz Heating Element: Kanthal APM/ Kanthal A1 Temperature Control: Microprocessor based Programmable controller with dual temperature display (Programmable Ramping and Dwelling), with RS485 communication. Construction: Exterior body made of Stainless Steel Insulation: High grade ceramic fibre insulation (Morgan) Additional Information: Optional Accessories: Gloves, Heating Element, Tongs, Pirani Guage, Vaccum Pump, Vaccum Fitting, Solenoid Valves Test Report to be submitted to the Buyer on Demand: Yes Usage/Application Lab
